RSR-1800 Air Duct Insulation Pin Welder: A Practical Welding Solution for HVAC Duct Insulation
What Is an Air Duct Insulation Pin Welder?
During HVAC duct insulation installation, one of the common challenges faced by contractors is ensuring that insulation materials remain firmly attached to the metal duct surface over long-term operation. If insulation layers are not properly fixed, problems such as insulation sagging, detachment, deformation, and reduced thermal efficiency may occur, affecting the overall performance of the HVAC system.
Traditional fixing methods, such as adhesive bonding, drilling, or manual fastening, may increase installation time and labor costs. In large-scale duct insulation projects, these methods can also make it difficult to achieve consistent fixing quality across a large working area.
An air duct insulation pin welder provides a more reliable solution by directly welding insulation pins onto metal duct surfaces. After welding, insulation materials such as glass wool, rock wool, and rubber foam can be securely installed with locking washers, creating a stronger and more stable insulation structure.
The RSR-1800 intelligent button-control air duct insulation pin welder is specially developed for HVAC duct insulation applications. With easy operation, compact design, and efficient welding performance, it helps HVAC contractors, duct manufacturers, and insulation installers improve installation efficiency while achieving reliable insulation fixing results.

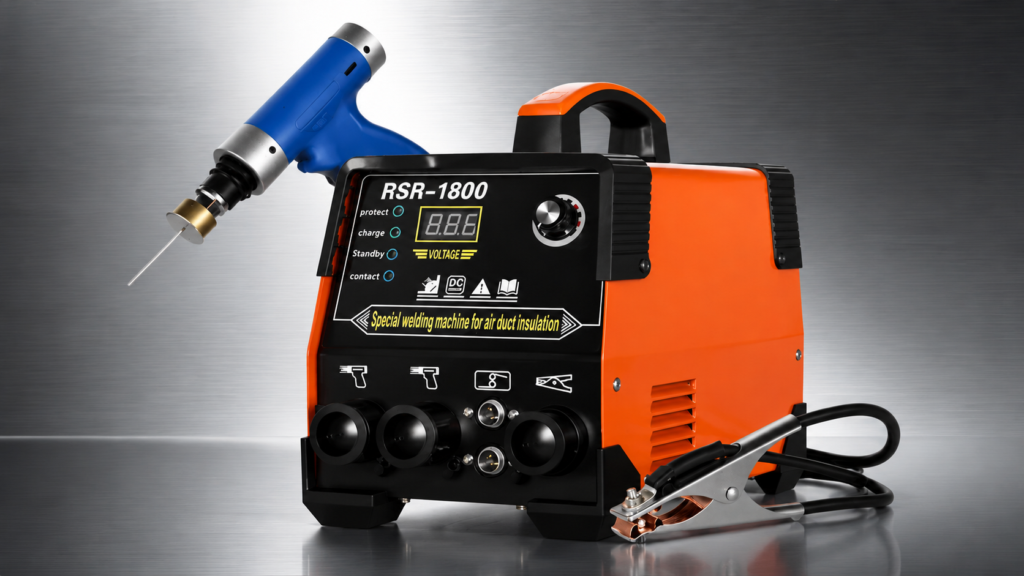

RSR-1800 Air Duct Insulation Pin Welder Overview
The RSR-1800 is an intelligent button-adjustable insulation pin welding machine, specially designed for air duct insulation pin welding. The machine will be supplied with the appropriate voltage according to the electrical standards of the destination country, ensuring safe and stable operation worldwide.
This machine is mainly used to weld insulation pins onto metal sheet surfaces, including galvanized air ducts, stainless steel ducts, iron sheet ducts, and other metal ductwork. After the pins are welded, insulation materials and locking washers can be applied to firmly secure the insulation layer to the duct surface.
For HVAC installation companies, ventilation duct manufacturers, central air-conditioning contractors, and insulation professionals, the RSR-1800 provides an efficient solution for HVAC duct insulation installation.. By quickly welding insulation pins onto metal duct surfaces, it reduces manual installation time, improves construction efficiency, and helps create a stronger and more reliable fixing structure for insulation materials in HVAC projects.
RSR-1800 Main Specifications
| Item | Specification |
|---|---|
| Model | RSR-1800 |
| Product Type | Intelligent Button-Control Air Duct Insulation Pin Welder |
| Applicable Pins | Air Duct Insulation Pins |
| Welding Thickness | Suitable for 0.5–5 mm metal sheet |
| Welding Speed | Approx. 10–30 pcs/min |
| Output Range | 35–66V |
| Machine Size | 410 × 205 × 305 mm |
| Machine Weight | Approx. 13.2 kg |
| Package Size | 490 × 290 × 395 mm |
| Package Weight | Approx. 16.9 kg |
Applications of the Air Duct Insulation Pin Welder
The RSR-1800 is suitable for various HVAC and duct insulation applications, including:
- Central air-conditioning duct insulation
- Ventilation duct fabrication and installation
- Smoke exhaust and cleanroom ventilation systems
- Factory, commercial building, and mechanical room insulation projects
It can be used on galvanized steel ducts, stainless steel ducts, iron sheet ducts, and other metal duct surfaces where insulation pins are required.
How to Use the RSR-1800 Air Duct Insulation Pin Welder
The RSR-1800 is designed for simple on-site operation.
Basic welding steps include:
- Connect the welding gun and grounding cable.
- Place the insulation pin onto the welding gun tip and align it with the welding position.
- Press the control button to complete welding.
- Check the welding strength before installing insulation materials.
For different duct materials and sheet thicknesses, a test weld is recommended before continuous operation to achieve the best welding result.
How to Choose the Right Air Duct Insulation Pin Welder?
1. Compatibility with duct materials
Ensure the machine is suitable for the duct materials and sheet thickness used in your projects.
2. Welding efficiency
For large HVAC projects, stable welding speed and continuous operation capability can significantly improve productivity.
3. Ease of operation
Simple controls help reduce operator training time and improve job-site efficiency.
4. Supplier support
Reliable technical guidance, spare parts availability, and after-sales service are also important factors.
The RSR-1800 is designed to meet these requirements with intelligent button adjustment, compact design, and practical operation.
Conclusion
The RSR-1800 air duct insulation pin welder provides an efficient solution for HVAC duct insulation projects. With voltage matched to local electrical standards, 0.5–5 mm welding capability and approximately 10–30 pins/min welding speed, it helps contractors improve installation efficiency and achieve reliable insulation fixing results.
